Question
Given a binary tree
struct TreeLinkNode {
TreeLinkNode *left;
TreeLinkNode *right;
TreeLinkNode *next;
}

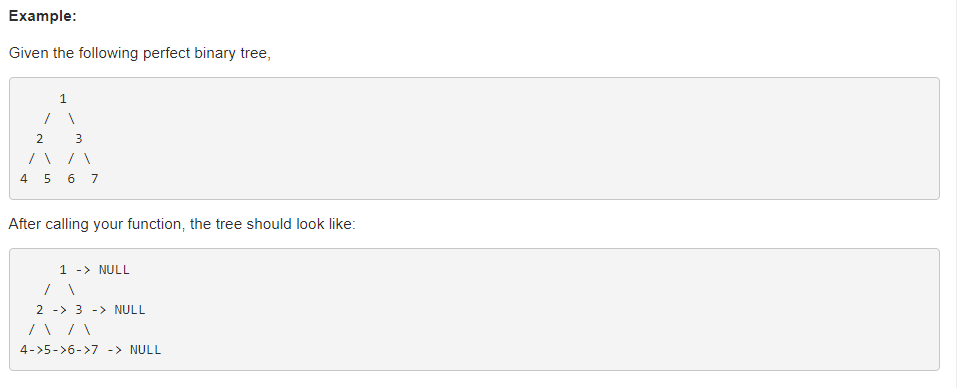

Populate each next pointer to point to its next right node. If there is no next right node, the next pointer should be set to NULL
.
Initially, all next pointers are set to NULL
.
Note:
- You may only use constant extra space.
- Recursive approach is fine, implicit stack space does not count as extra space for this problem.
- You may assume that it is a perfect binary tree (ie, all leaves are at the same level, and every parent has two children).
Difficulty:Medium
Category:Tree, Depth-First-Search
Analyze
方案一:递归 (Solution 1)
这道题目是完全二叉树,所以如果节点的左子节点存在的话,那么右子节点必定存在:
- 如果左子节点存在,那么左节点的
next
指针可以直接指向其右子节点 - 对应右节点,判断其父节点的
next
是否为空,如果不为空,那么就指向父节点next
指针指向的节点的左子节点,如果为空那么就指向NULL
.
方案二:迭代 (Solution 2)
Solution
Solution 1:递归的解决方案
/**
* Definition for binary tree with next pointer.
* struct TreeLinkNode {
* int val;
* TreeLinkNode *left, *right, *next;
* TreeLinkNode(int x) : val(x), left(NULL), right(NULL), next(NULL) {}
* };
*/
class Solution {
public:
void connect(TreeLinkNode *root) {
if (root == nullptr) return;
if (root->left) root->left->next = root->right;
if (root->right) root->right->next = root->next ? root->next->left : NULL;
connect(root->left);
connect(root->right);
}
};
Solution 2: 迭代的解决方案
class Solution {
public:
void connect(TreeLinkNode *root) {
while (root) {
TreeLinkNode *next = nullptr, *prev = nullptr;
// Loop in the same level
for (; root; root = root->next) {
// The first one --> to find the next level
if (!next) next = root->left ? root->left : root->right;
if (root->left) {
if (prev) prev->next = root->left;
prev = root->left;
}
if (root->right) {
if (prev) prev->next = root->right;
prev = root->right;
}
}
root = next; // Next Level
}
}
};
